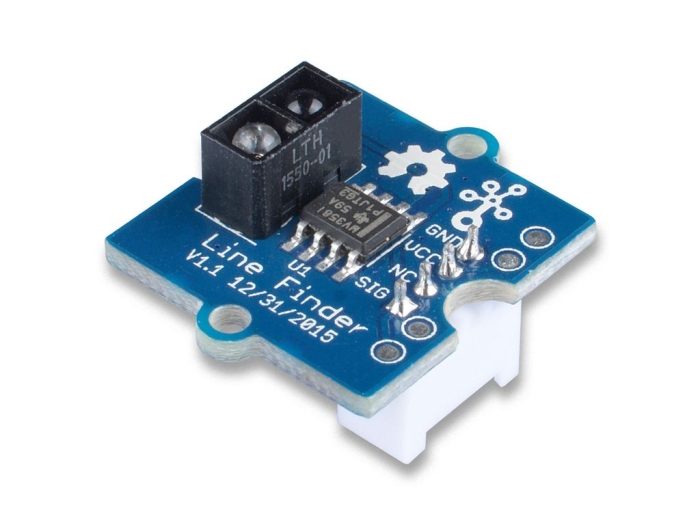

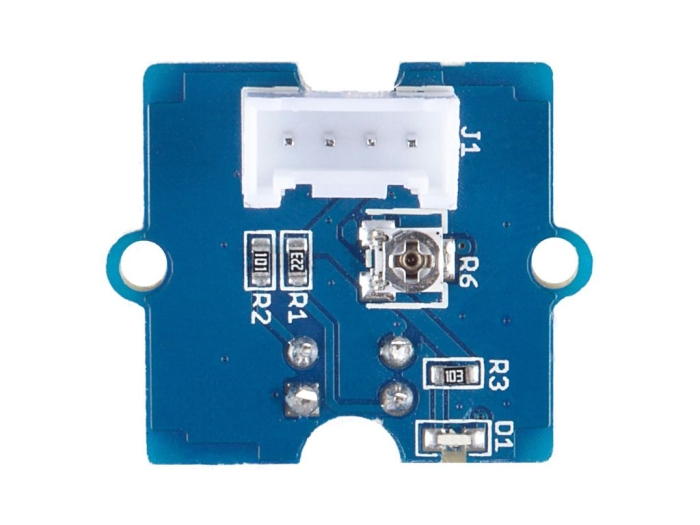

Line finder grove


Référence : 101020172
Compatibilité
Arduino
Micro:bit
Raspberry Pi
STM32

5.75€ غير شامل. الضرائب 6.9€ بما في ذلك. الضرائب

Follow the line with your robot with this Grove infrared module. اقرأ أكثر

Quantité :

يمكن أن تهمك هذه المنتجات أيضًا

وصف

Follow the line with your robot with this Grove infrared module.

  • Based on an infrared led and a phototransistor, it sends back a digital signal (0 : line not detected or 1 : black line detected)
  • Easy to use thanks to the Grove connectic
  • Requires an extension card: Shield Grove (#categorie-14);
  • Sensor compatible with any card from 3.3V to 5V;
  • Detection distance: 1.5 to 5cm adjustable with a potentiometer
  • Module dimensions: 24.2mm x 20mm x 10.8mm
  • Weight: 8g

Application examples: line-following robot

Grove cable supplied.

Manufacturer: Seeed Studio (https://wiki.seeedstudio.com/Grove-Line_Finder/)

Reference : 101020172
