Module MP3 V4


Référence : 107020129
Compatibilité

23.25€ غير شامل. الضرائب 27.9€ بما في ذلك. الضرائب

MP3 Grove Module: Easy Audio Playback with microSD Support This MP3 Grove module is based on the WT2605CX chip and allows the playback of audio files in MP3, WAV, and WMA formats from a microSD card (not included). اقرأ أكثر

Quantité :

وصف

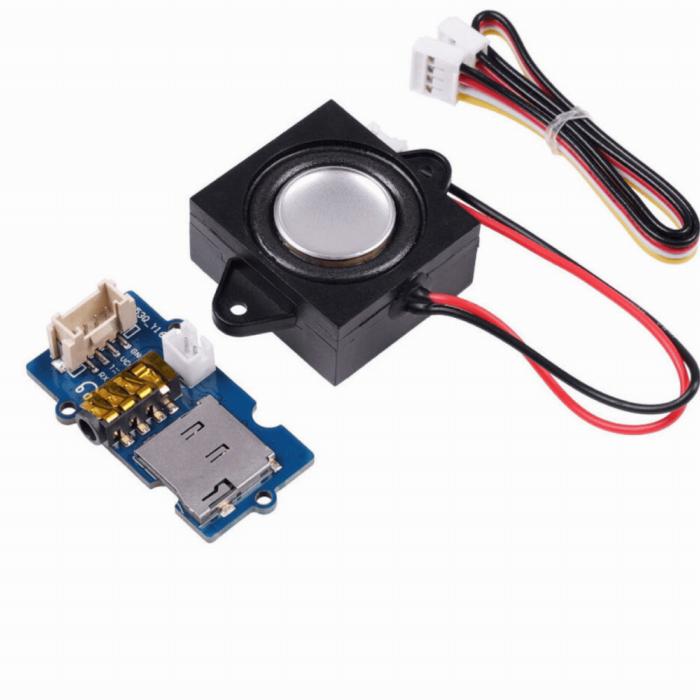

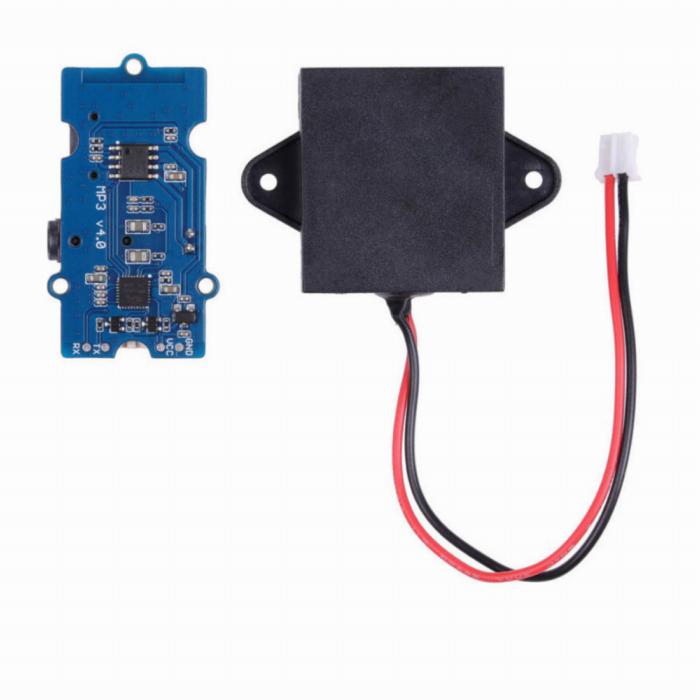

MP3 Grove Module: Easy Audio Playback with microSD Support

This MP3 Grove module is based on the WT2605CX chip and allows the playback of audio files in MP3, WAV, and WMA formats from a microSD card (not included). It is ideal for your electronic projects that require sound output, with options for connecting headphones or amplified speakers.

Features:

  • Allows the playback of audio files in MP3, WAV, and WMA formats via a microSD card (not included).
  • Audio outputs available: JST connector for speaker and 3.5 mm stereo Jack for headphones or amplified speakers.
  • Control playback and volume with 32 levels via UART interface.
  • Simultaneous audio output on both speaker and headphone ports.
  • Easy to use with the Grove connector and compatible with 5V boards.
  • Sampling rates from 8 kHz to 48 kHz for varied audio quality.

Technical Specifications:

  • Power supply: 5 VDC via Grove connector
  • Power consumption: 40 mA
  • Supported audio formats: MP3, WAV, WMA
  • Sampling rates: 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz
  • microSD support (not included): FAT16 and FAT32, up to 32 GB
  • Audio outputs: JST 2.0 mm connector for speaker and 3.5 mm stereo Jack
  • Dimensions: 20 x 40 mm
  • Weight: 10 g
  • Version: 4.0
  • Seeed Studio reference: 107020129
