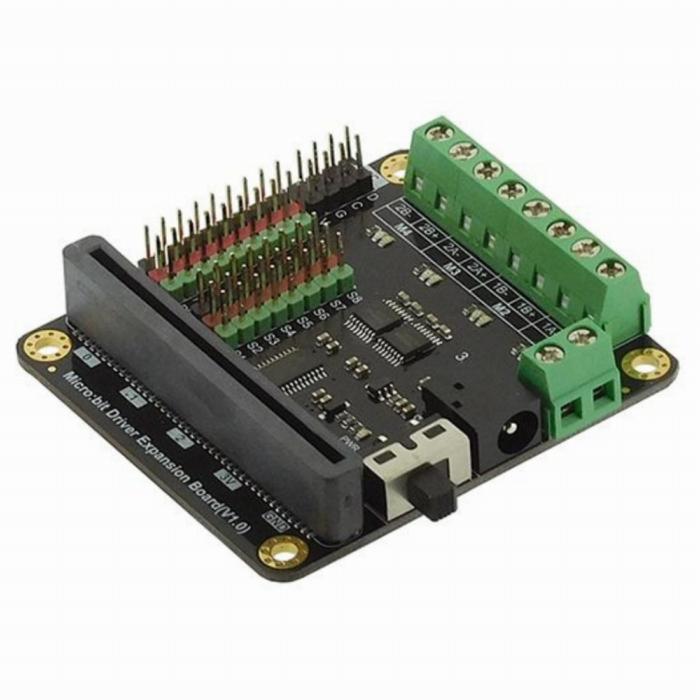

DfRobot DFR0548 power board


Référence : DFR0548
Compatibilité
Arduino
Micro:bit
Raspberry Pi
STM32

10.78€ غير شامل. الضرائب 12.94€ بما في ذلك. الضرائب

Motor control board for micro:bit V1 and V2 (not included) based on an HR8833 allowing control of up to four 750 mA DC motors per channel or two stepper motors. اقرأ أكثر

Quantité :
وصف

Motor control board for micro:bit V1 and V2 (not included) based on an HR8833 allowing control of up to four 750 mA DC motors per channel or two stepper motors.

Features :

This card can also control 8 servomotors. The module features several LEDs to indicate the direction of rotation of the motors.

Technical specifications :

  • Power supply : 3.5 to 5.5 Vdc via :

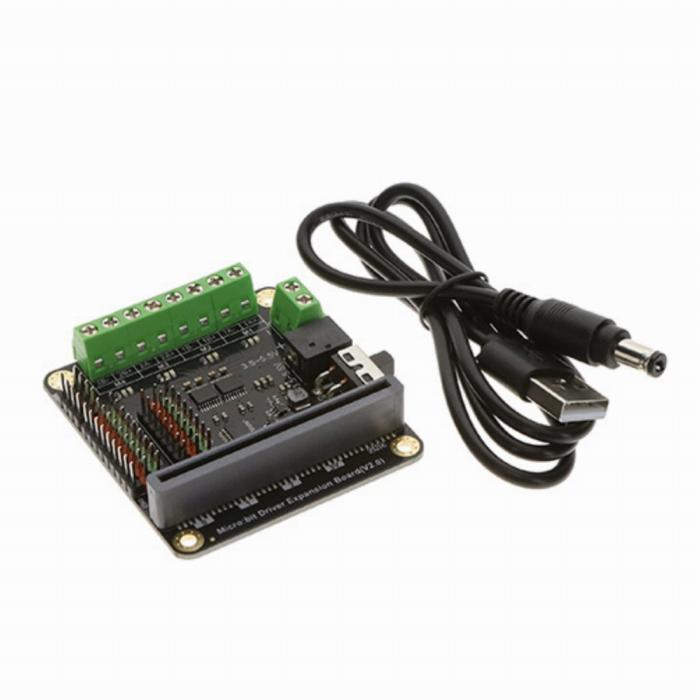

    1. USB (USB cable included)
    2. Power connector 5.5 x 2.1 mm
    3. Screw terminals
  • Micro:bit interface on 3-pin connectors : P0, P1, P2, P8, P12, P14, P15 and P16
  • Servomotor interface on 3-pin connectors : S1 to S8
  • DC or stepper motor interface on screw terminals : M1 to M4
  • Max. current : 750 mA per channel
  • Digital output voltage : 0 and 3.3 Vdc
  • ​Analog output voltage : 0 to 3.3 Vdc
  • Dimensions : 63 x 58 mm
  • Weight : 67 grams
  • Micro:bit V1 and V2 compatible
