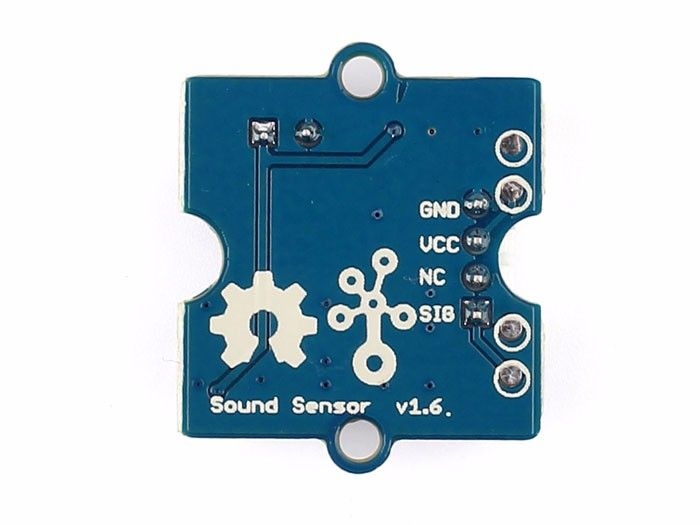

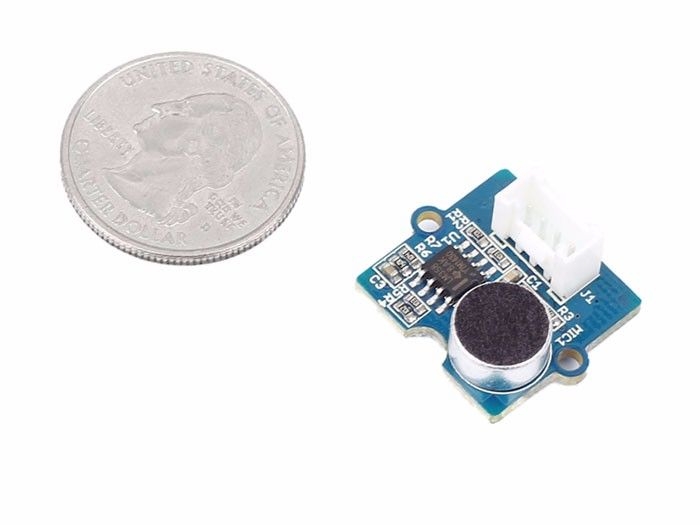

Sound sensor Grove


Référence : 101020023
Compatibilité
Arduino
Micro:bit
Raspberry Pi
STM32

6.58€ غير شامل. الضرائب 7.9€ بما في ذلك. الضرائب

Detect noise with the Grove sound sensor. اقرأ أكثر

Quantité :

يمكن أن تهمك هذه المنتجات أيضًا

Speaker Grove
Speaker Grove
Buzzer Grove
Buzzer Grove
MP3 module Grove
MP3 module Grove
وصف

Detect noise with the Grove sound sensor.

  • Based on an electret microphone and an L358 amplifier
  • Easy to use thanks to the Grove connector
  • Microphone impedance: 2.2kOhms
  • Microphone frequency range: 16-20kHz
  • Requires an extension card: Shield Grove (#category-14);
  • Sensor compatible with any card from 3.3 to 5V;
  • Module dimensions: 20mm x 40mm
  • Weight: 9g

Application examples: Sound level meter, ...

Manufacturer : Seeed Studio (https://wiki.seeedstudio.com/Grove-Sound_Sensor/)

Reference : 101020023
